Roofing Forming Machine Finished Profile Drawing

Color formed profile is made of color coated steel , which is rolled and cold bent into various wave shapes. It is suitable for industrial and civil buildings, warehouses, special buildings, large-span steel structure houses, roofs, walls and internal and external wall decorations, etc. It has the features of lightweight, high strength, rich color, convenient and quick construction, earthquake resistance, fire prevention, rain, long life, maintenance-free, etc., and has now been widely promoted and applied.
The longitudinal lap of pressurized steel plate should be located at the mold strip or wall beam, and both plates should be extended to the supporting members. Lap length: 350 mm for high-wave roof panels; 250 mm for low-wave roof panels with <10% roof gradient, 200 mm for low-wave roof panels with >10% roof gradient; 120 mm for wall panels. When lapping the roof, a through-length sealing tape should be set up between the seams of the panels.

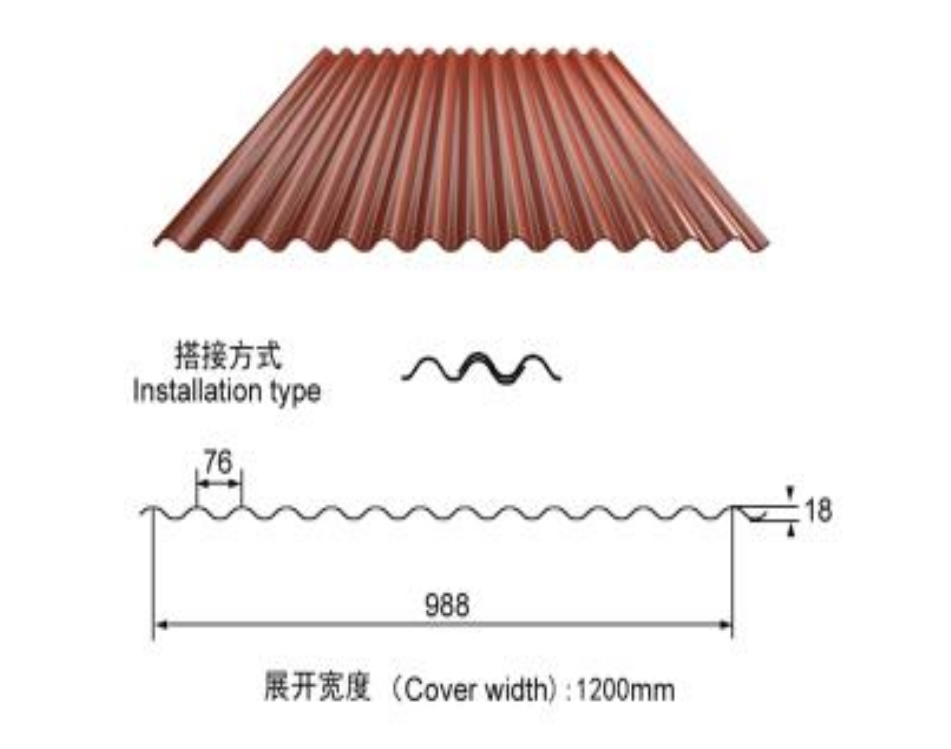

20100519084153646201811210932457802010051815034082018 76 988 Corrugated201702251322534942017051114321734420100519121403295201204141646427362010052608312241120141226093925781
