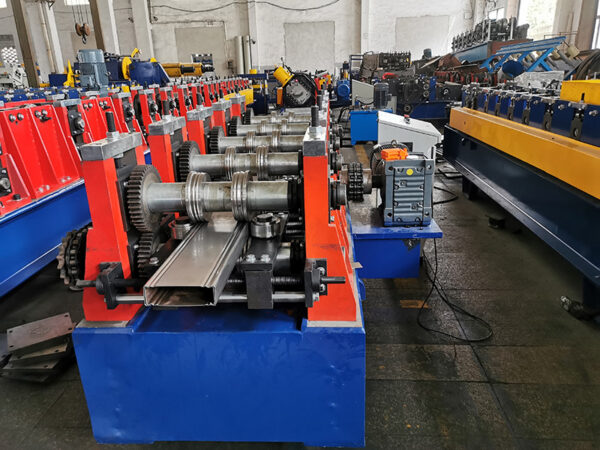

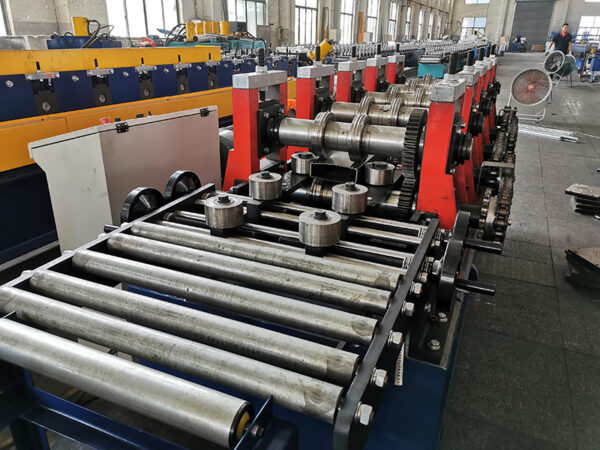

Beam Forming Machine
The shelf beam machine is used to produce one of the components of the shelf series, the “shelf beam. The finished products are “shelf beams”. It is mostly used in light shelf components such as display, placement, and display of goods in warehouses, supermarkets, and small and large shopping centers.
Process Flow:
Automatic uncoiler—guide—Pinching&leveling — roll forming — Straightening—Cutting —Unloading
Main parameter
C/N | Item | Unit | Parameters |
1 | Forming speed | M/min | 0-18 |
2 | Number of forming passes | channels | 26(as to the profile) |
3 | Rolling thickness | mm | 1.2-1.8mm |
4 | Roll material | Gcr15 quenching treatment | |
5 | Shaft material | 40Cr quenching treatment (HB220-260) | |
6 | Shaft diameter | Φ75mm, quenching treatment (Harbin bearing) | |
7 | Cutting method | Hydraulic cutting |
