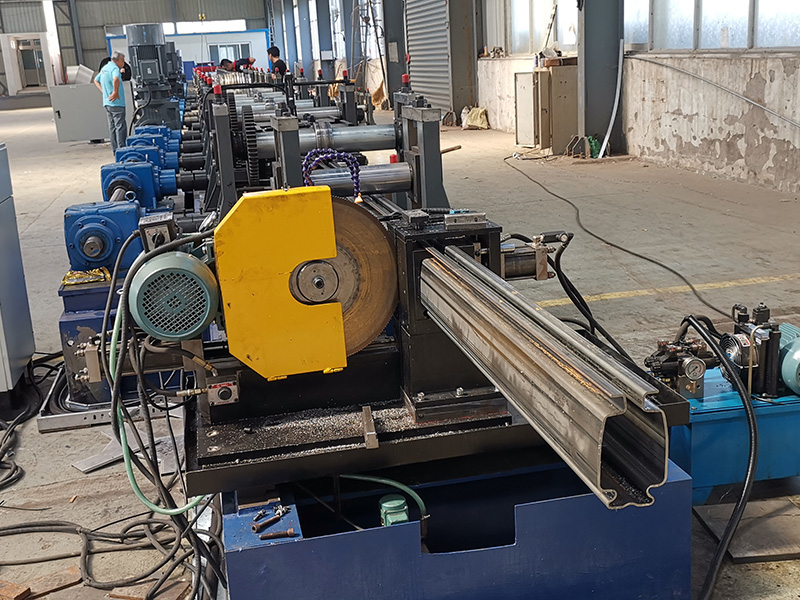

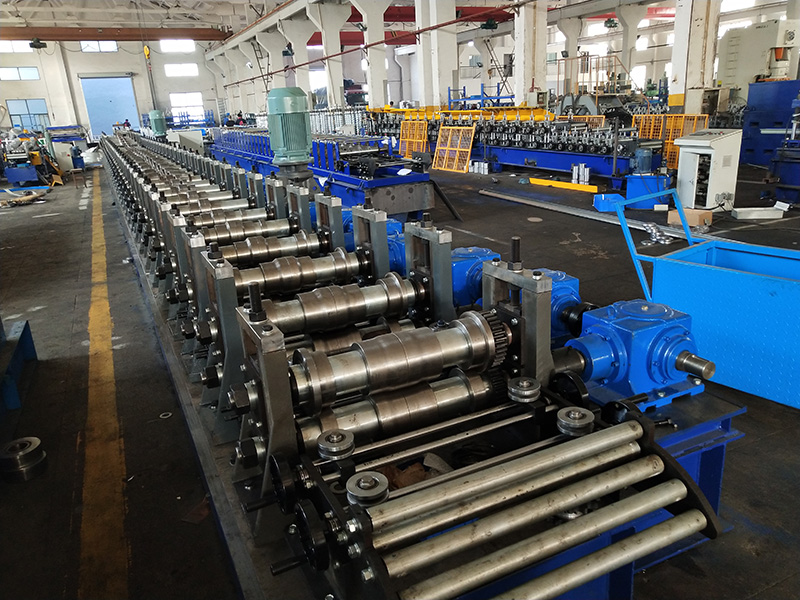

KBK Rail Forming Machine

Parts assembly, manufacturing processing industry, pallets loading, injection molding, storage loading and unloading, equipment repair and maintenance, etc.

Process Flow:

Hydraulic uncoiling —Guided feeding — Clamping and feeding leveling — Roll forming —Cutting —Unloading

Main parameter

C/N	Item	Unit	Parameters
1	Forming speed	M/min	0-20
2	Number of forming passes	channels	36（as to the profile）
3	Rolling thickness	mm	3.0mm
4	Roll material		Gcr15 quenching treatment
5	Shaft material	40Cr quenching treatment (HB220-260)
6	Shaft diameter	Φ100mm quenching treatment (Harbin bearing)
7	Cutting method	Hydraulic cutting
