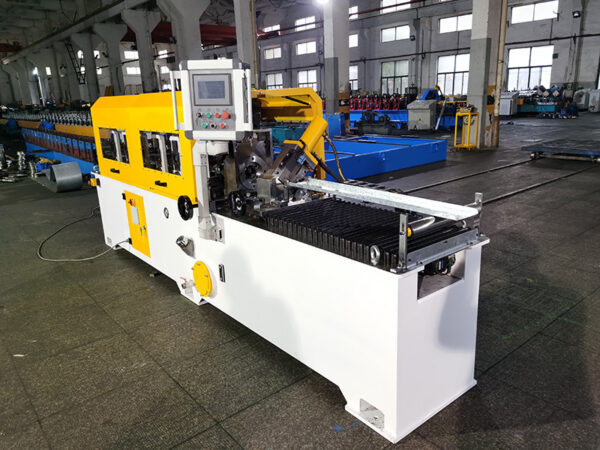

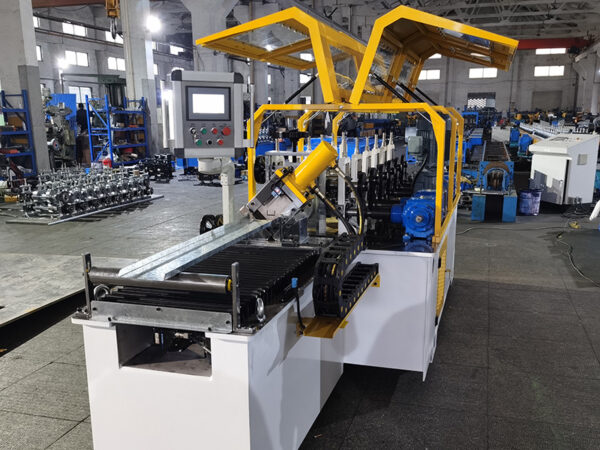

Light Steel Keel Forming Machine
The products that can be produced by keel machine are: light steel keel, baked keel, cassette keel, various building profiles, steel structure, etc..
Process Flow:
Hydraulic uncoiling — Guided feeding — pinching and leveling — Roll forming — Cutting —Unloading
Main parameter
| C/N | Item | Unit | Parameters |
| 1 | Forming speed | M/min | 0-20 |
| 2 | Number of forming passes | channels | 9（as to the profile） |
| 3 | Rolling thickness | mm | 0.6-1.2mm |
| 4 | Roll material | Gcr15 quenching treatment | |
| 5 | Shaft material | 40Cr quenching treatment (HB220-260) | |
| 6 | Shaft diameter | Φ60mm ,quenching treatment (Harbin bearing) | |
| 7 | Cutting method | Hydraulic cutting | |
