Industrial Welded Pipe Production Line

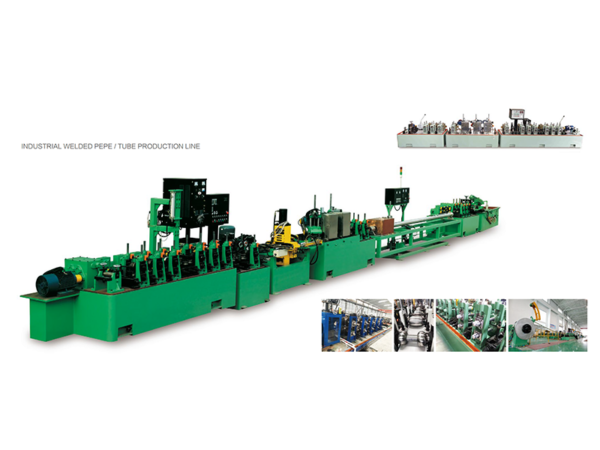

Welded Pipe Production Line
Welded pipe production line is a set of machinery and equipment used to manufacture welded pipes from steel strips or coils. The production process involves feeding steel strips or coils through a series of rollers that gradually shape the material into cylindrical shapes. Then, the edges of the cylindrical shapes are welded together to form a continuous pipe.
Production Process
The production process of a welded pipe production line can be divided into several stages:
Uncoiler– Forming stage–Welding stage–Welded head grinding stage–Sizing stage–Automatic cut of stage–End- product frame
Main components of production line: uncoiler, forming and welding unit, grinding machine, sizing unit, straightening rack, cutting machine, finished product shelf
Production process: Uncoiler– Forming stage–Welding stage–Welded head grinding stage–Sizing stage–Automatic cut of stage–End- product frame
Production capacity:1-10 m/min
Welder type: Ultrasonic Welding machine
Cutting stage: Metal saw cutting stage
Application: Mainly used for decoration, products, appliances stainless steel pipe and carbon steel (round tube, square tube, shaped tube) production.
Specification
Model | Horizontal
Shaft Size(mm)
|
Vertical
Shaft Size(mm)
|
Out
Diameter Range (mm) |
Thickness(mm) | Main motor
Power(kw) |
Dimension(meters) |
40 | 40 | 25 | 8-51 | 0.5-2.0 | Front:7.5
Rear:5.5 |
20 x 1.0 |
50 | 50 | 30 | 25-63 | 0.2-3.0 | Front:11
Rear:7.5 |
24×1.2 |
60 | 60 | 40 | 50-114 | 0.6-3.5 | Front:15
Rear:15 |
26×1.4 |
80 | 80 | 50 | 89-168 | 1.0-4.5 | Front:18.5
Rear:18.5 |
32×2.3 |
100 | 100 | 60 | 114-219 | 1.0-5.0 | Front:22
Rear:22 |
36×2.5 |
