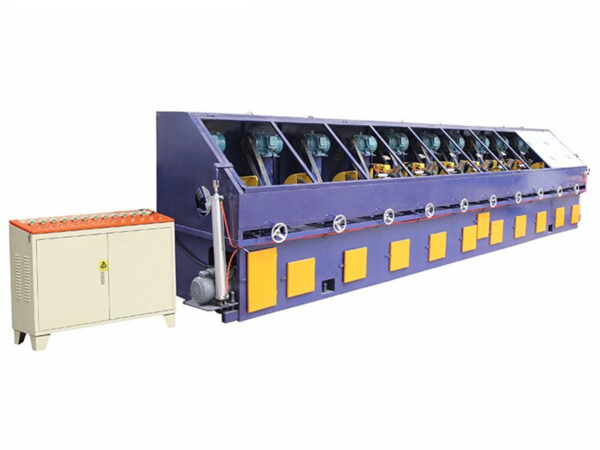

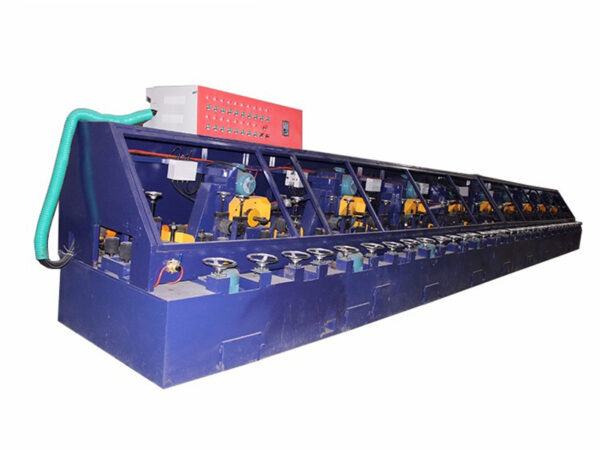

8 Heads Round Square Pipe Polishing Machine
Polishing Machine is mainly used for polishing and drawing the surface of stainless steel round / square and rectangle pipes.
- Description: Round, Square and rectangle tube polishing machine .
- Application: Mainly used for polishing and drawing the surface of stainless steel pipe with drawing.
- Continuous polishing process: After feeding, polishing (flap wheel, jute abrasive wheel, cloth wheel, wind cloth wheel), plus polishing wax, discharge and other technics.
- As the stainless steel polishing machine polishing technology is mature, widely used in decoration.
- Convenient operation, high quality, reasonable price, consistent with the quality of domestic and international market demands, making high-quality, high brightness of the tube.high brightness and less pollution.

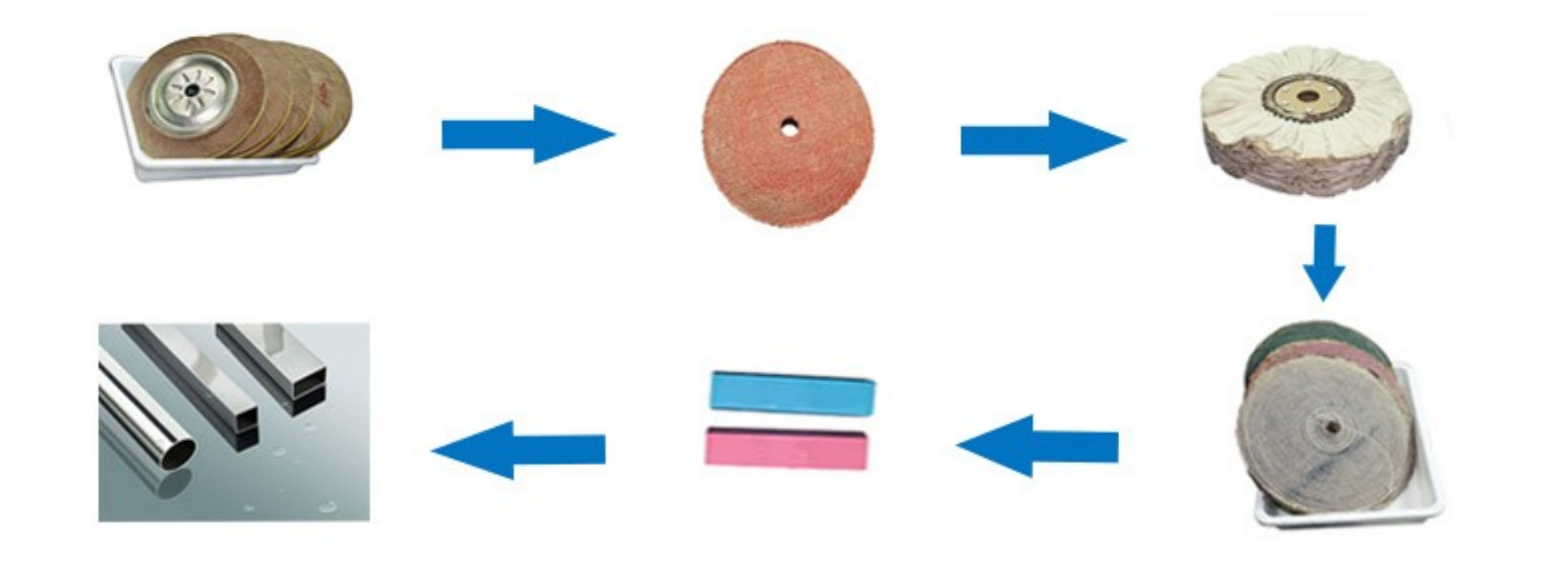

- Production process:
Feeding-falp wheel-Sisal round-Cloth round-Wind cloth round -Polishing wax-Discharging.
Specification
Model |
Driving Motor(kw) |
Total
Power (kw)
|
Diameter
Of Head Spindle
|
Polishing
Range
|
Speed
(m/min) |
(LxWxH)
Dimension
|
8 sets new round tube polishers | 7.5kwx8
Main motor: 3kw |
63 | Ф36 | Ф12-Ф63 | 0-20 | 7980×1350×1550 |
10 sets round tube polisher | 4.5kwx5
5.5kwx5 Main motor: 2.2kw |
49.7 | Ф36 | Ф12-Ф63 | 0-20 | 7040×1270×1520 |
Large 10 sets round tube polisher | 5.5kwx10
Main motor: 3kw |
58 | Ф36 | Ф50.8-Ф133 | 0-18 | 7040×1450×1520 |
32 groups square tube polishing machine | 5.5kwx12
4kwx20 Main motor: 5.5kw (Inverter) |
151.5 | Ф36 | 13×13-100×100 | 0-30 | 13040×1500×1300 |
36 group square tube polishing machine | 5.5kwx16
4kwx20 5.5kw (Inverter) |
173.5 | Ф36 | 13×13-100×100 | 0-30 | 14500×1500×1300 |
16 groups square tube polishing machine | 5.5kwx16
Main motor: 5.5kw |
93.5 | Ф36 | 13×13-100×100 | 0-30 | 6600×1500×1300 |

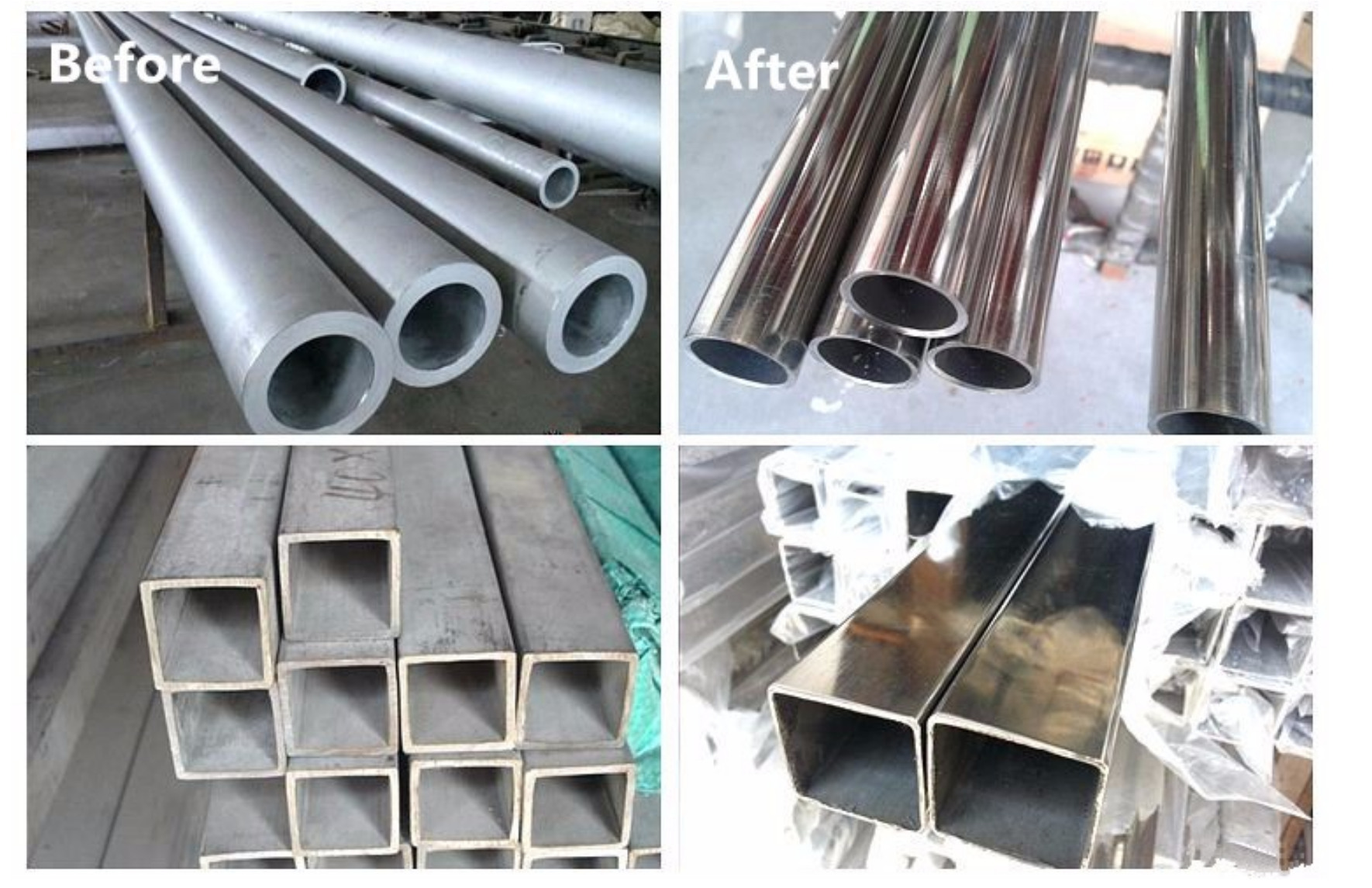

Polishing Effect
Production process:
Feeding-falp wheel-Sisal round-Cloth round-Wind cloth round -Polishing wax-Discharging.
