Corrugated Roofing Forming Machine

This corrugated tile forming machine can produce corrugated metal tiles for industrial and civil buildings, warehouses, special buildings, large span steel roofing, house walls and exterior decoration, etc. It also includes some villages, supermarkets, hotels, exhibition halls, home buildings, shopping mall shutters and other buildings. Tile roll forming machine, roofing tile surface is very smooth and beautiful, the roof is not scratched. It has beautiful, classical appearance and elegant taste.

Process Flow:

Automatic uncoiler—Guided feed—Roll forming— Cutting —Unloading

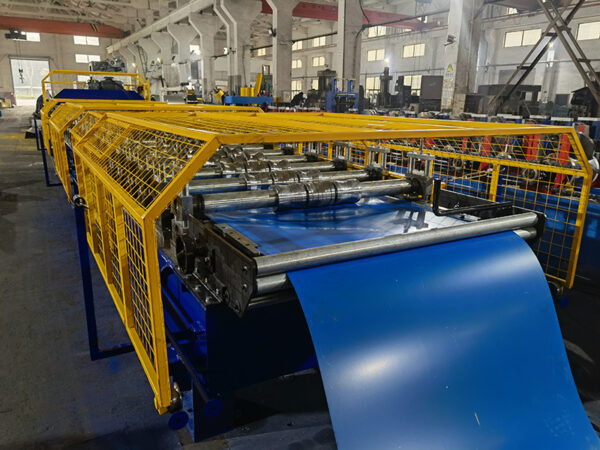

Corrugated Roofing forming machine (1)

Main parameter

C/N Item Unit Parameters
1 Forming speed M/min 0-50
2 Number of forming passes channels 22(as to the profile)
3 Rolling thickness mm 0.3-0.8mm
4 Roll material Gcr15 quenching treatment
5 Shaft material 40Cr quenching treatment (HB220-260)
6 Shaft diameter Φ75mm, quenching treatment (Harbin bearing)
7 Cutting method Electric cutting

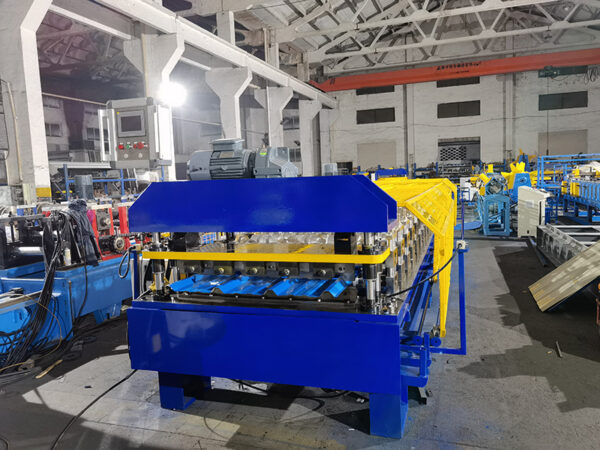

Corrugated Roofing forming machine (1)
