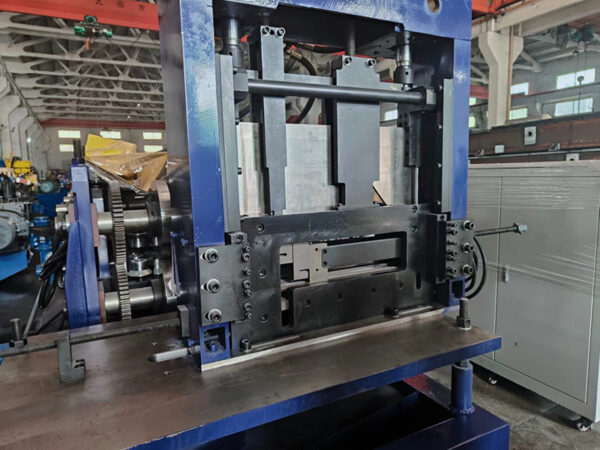

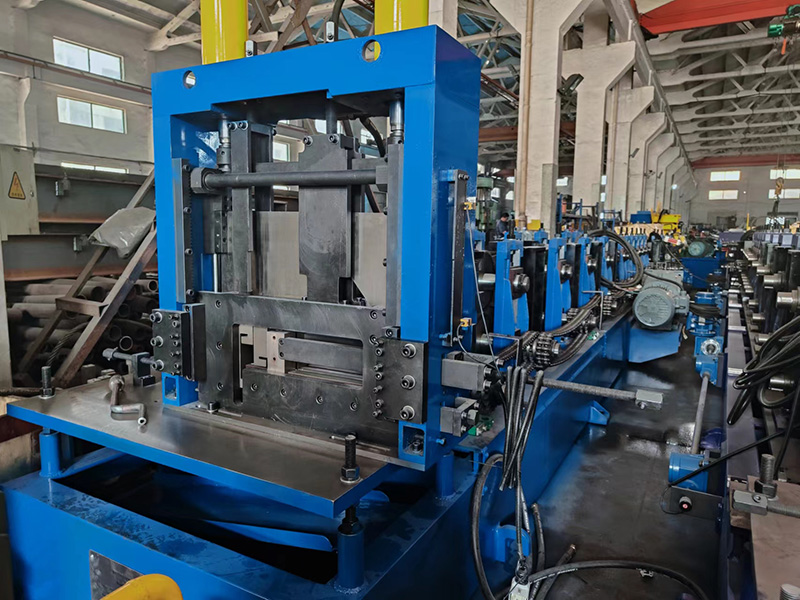

CZ Interchangeable Steel Machine
Automatic quick-change CZ steel forming equipment is a set of rolls that can produce various specifications of CZ purlin single roll forming equipment. Automatic quick change CZ steel forming equipment mainly consists of passive uncoiler, straightening device, punching device, front shearing device, forming machine, infinitely forming shearing device, hydraulic station, computer control system.
Automatic quick change CZ steel forming equipment, can change CZ steel, any type of 80-300mm can be quickly changed within a minute, you need to achieve product specification change, forming tool can achieve any type of induction shear, no need to change tools, feed port automatically adjust to the middle, shear length fixed, good precision, can Save labor cost and improve production efficiency
Process Flow:
Automatic uncoiler—Guided feed—Roll forming— Cutting —Unloading
Automatic C/Z Purlin Channel Roll Forming Machine
C/Z Purlin Machine parameter
C/N | Item | Unit | Parameters |
1 | Forming speed | M/min | 0-20 |
2 | Number of forming passes | channels | 20(as to the profile) |
3 | Rolling thickness | mm | 1.6-3mm |
4 | Roll material | Gcr15 quenching treatment | |
5 | Shaft material | 40Cr quenching treatment (HB220-260) | |
6 | Shaft diameter | Φ85mm quenching treatment (Harbin bearing) | |
7 | Cutting method | Hydraulic cutting |
