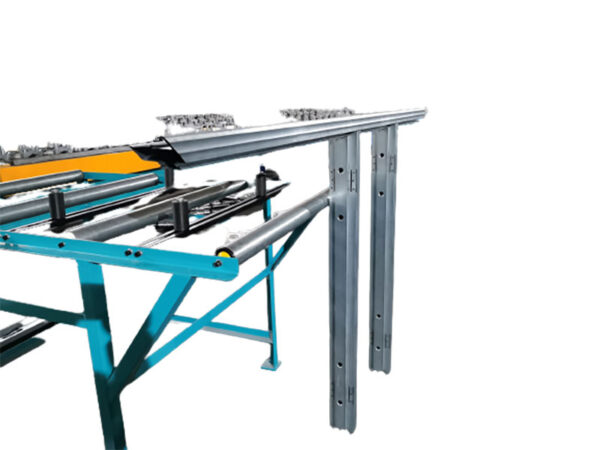

Door frame Forming machine

Door frame forming machine is used to produce door frame with wrapped edges related to the door and window industry, and the finished products produced are wrapped edges door frames. It is often used for the door frame on the door of office, store, private house, hotel and other houses.

Process Flow:

Automatic loading — pinch feed leveling — Roll forming (with guide feed) — Hydraulic cutting (servo) —Unloading

Door frame Forming machine process flow





Products Categories
Get A Free Quote
Contact Form Demo (#3)

Main Parameter

C/N Item Unit Parameters
1 Forming speed M/min 0-15
2 Number of forming passes channels 18(as to the profile)
3 Rolling thickness mm 0.8-1.5
4 Roll material   Gcr15 quenching treatment
5 Shaft material 40Cr quenching treatment (HB220-260)
6 Shaft diameter Φ80mm, quenching treatment (Harbin bearing)
7 Cutting method Hydraulic shear

Door frame Forming machine Main parameter
