Double-layer Color Roofing Forming Machine

Finished products are mostly used in industrial park buildings, factories, logistics transfer stations, large warehouses, and decorative covers on the roofs of private residential houses..

Process Flow:

Automatic uncoiler—Guided feed—Roll forming— Cutting —Unloading

Double-layer color Roofing forming machine 01

Double-layer Color Roofing Forming Machine 1 (3)

Main parameter

C/N Item Unit Parameters
1 Forming speed M/min 0-20
2 Number of forming passes channels 16/18(as to the profile)
3 Rolling thickness mm 0.3-0.8mm
4 Roll material   Gcr15 quenching treatment
5 Shaft material 40Cr quenching treatment (HB220-260)
6 Shaft diameter Φ70 quenching treatment (Harbin bearing)
7 Cutting method Electric cutting

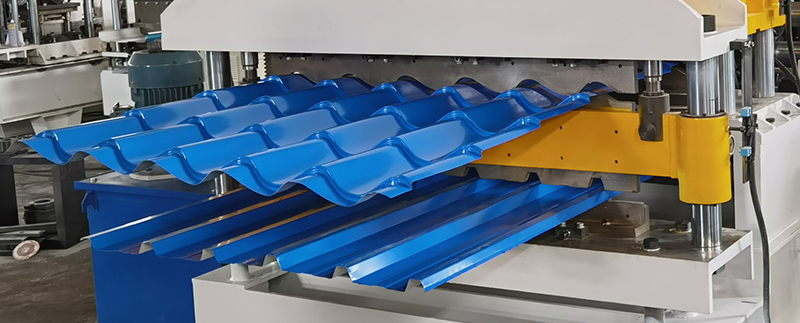

Double-layer Color Roofing Forming Machine 1 (1)

Application sites

Double-layer Color Roofing Forming Machine 1 (2)
