Guard Rail Forming Machine

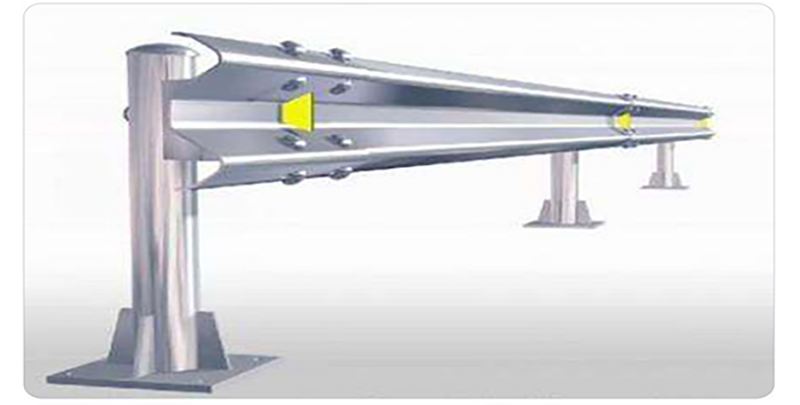

The guard rail equipment production line is a guardrail forming machine used for the production of highway industry, and the finished product is “road guardrail baffle”. It is mostly used for safety guardrails on motor vehicle lanes such as highways, national roads, provincial roads, urban roads, and rural roads
Process Flow:

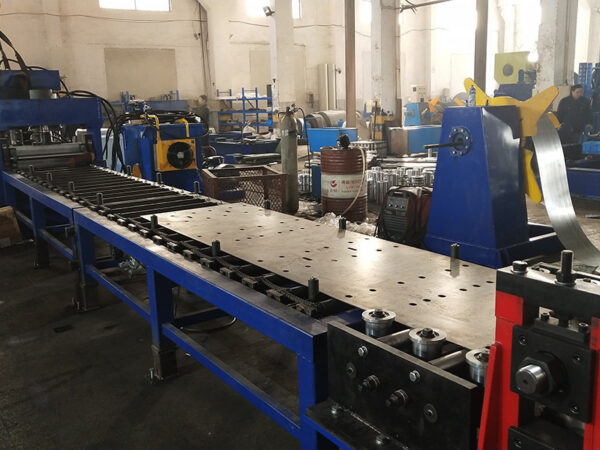

Automatic discharge—7roller leveling—servo feeding—hydraulic punching and cutting—quick feeding-forming mainframe —Unloading
Main parameter
C/N | Item | Unit | Parameters |
1 | Forming speed | M/min | 0-20 |

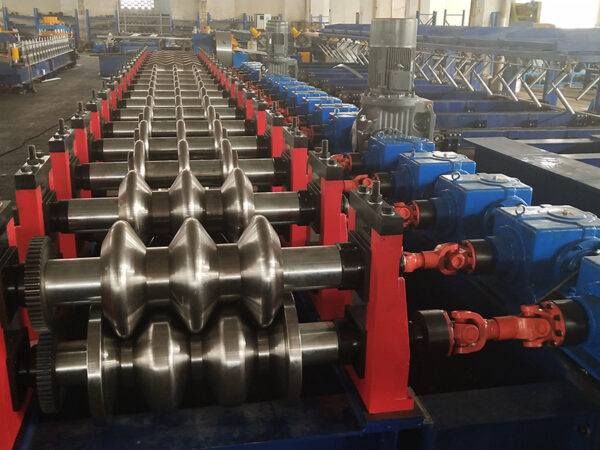

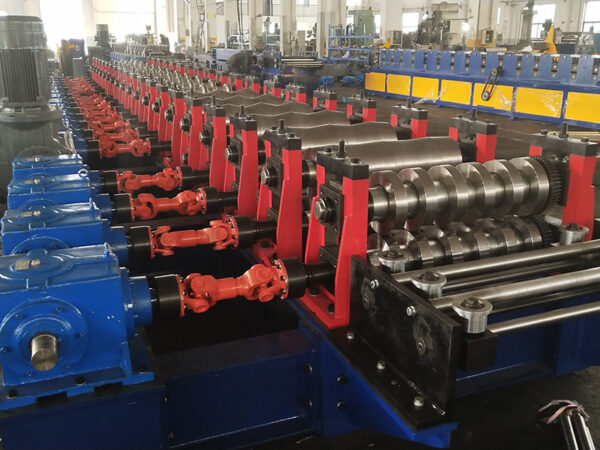

2 | Number of forming passes | channels | main roll 12(as to the profile) |
3 | Rolling thickness | mm | 3mm |
4 | Roll material | Gcr15 quenching treatment | |
5 | Shaft material | 40Cr quenching treatment (HB220-260) | |
6 | Shaft diameter | Φ80mm, quenching treatment (Harbin bearing) | |
7 | Cutting method | Hydraulic cutting |
