Gutter Forming Machine

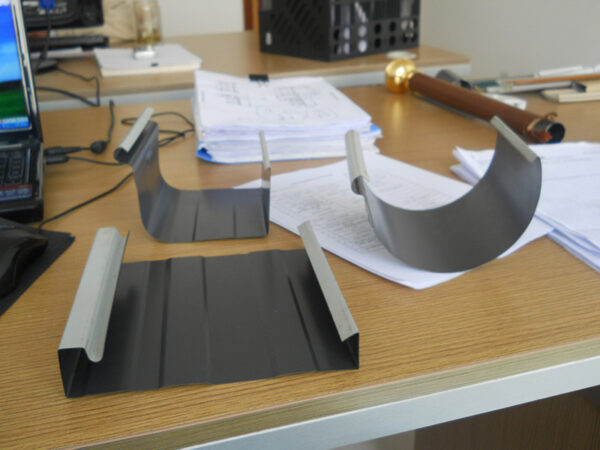

Gutter forming machine is used to produce “gutter board/gutter board” for steel structure and roof drainage system. Formed sheets are mostly used in “gutter” as one of the drainage systems for private villas, studios and other roofing buildings.

Process Flow:

Automatic uncoiler—Guided feed—pinch leveling—Roll forming— Cutting —Unloading

Gutter forming machine (2)

Main parameter

C/N Item Unit Parameters
1 Forming speed M/min 0-15
2 Number of forming passes channels 19(as to the profile)
3 Rolling thickness mm 0.4-0.7mm
4 Roll material Gcr15 quenching treatment
5 Shaft material 40Cr quenching treatment (HB220-260)
6 Shaft diameter Φ70quenching treatment (Harbin bearing)
7 Cutting method Hydraulic cutting
