Ridge Tile Forming Machine

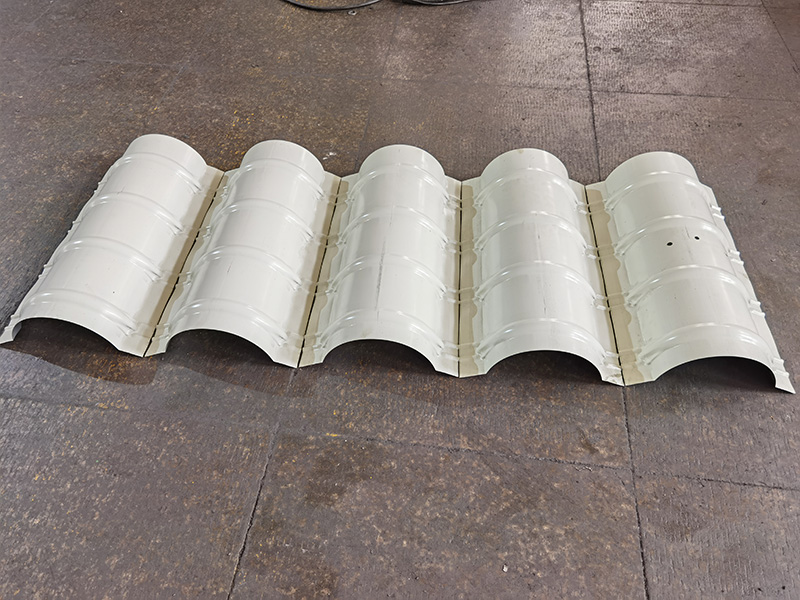

Ridge tile roll forming machine is formed by color steel plate as substrate, PLC automatic computer control, hydraulic shear, high strength chain wheel drive, rolling, forming, fixed cutting and other processes, with the advantages of light weight, high strength, good waterproof, easy and fast installation.

The market demand is large, and the market development prospect is broad. Special materials or sheet thickness, can be customized according to customer requirements.

Roof Tile Making Machine Process Flow:

Automatic uncoiler—Guided feed—pinch leveling—Roll forming— Cutting —Unloading

Main parameter

C/N Item Unit Parameters
1 Forming speed M/min 0-30
2 Number of forming passes channels 14(as to the profile)
3 Rolling thickness mm 0.27-0.8mm
4 Roll material Gcr15 quenching treatment
5 Shaft material 40Cr quenching treatment (HB220-260)
6 Shaft diameter Φ80mm. quenching treatment (Harbin bearing)
7 Cutting method Hydraulic cutting

Ridge Gap Forming Machine (4)
