Rolling Shutter Door Roll Forming Machine

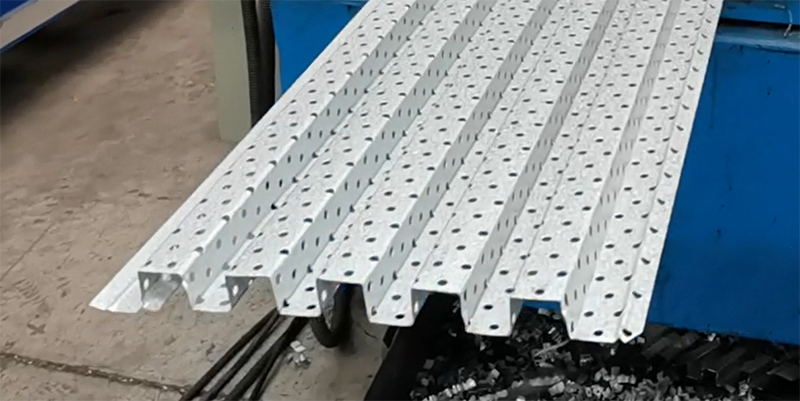

The finished products produced by the machine and equipment are ceiling panels, which are mostly used in office buildings, offices, shopping malls, large shopping plazas and other indoor decoration of ceiling panels

Process Flow:

Passive uncoiling —- guide feeding —- Pinch-feed leveling—roll forming —- cutting —Unloading

Main parameter

C/N Item Unit Parameters
1 Forming speed M/min 0-15
2 Number of forming passes channels 19(as to the profile)
3 Rolling thickness mm 0.4-0.7mm
4 Roll material Gcr15 quenching treatment
5 Shaft material 40Cr quenching treatment (HB220-260)
6 Shaft diameter Φ70mm.quenching treatment (Harbin bearing)
7 Cutting method Hydraulic cutting

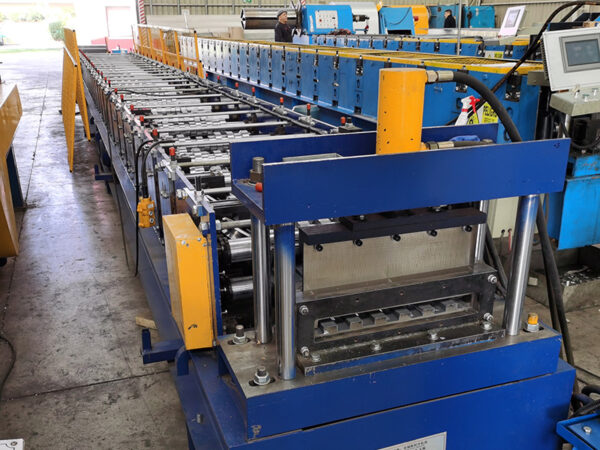

Roofing ceiling forming machine 001
