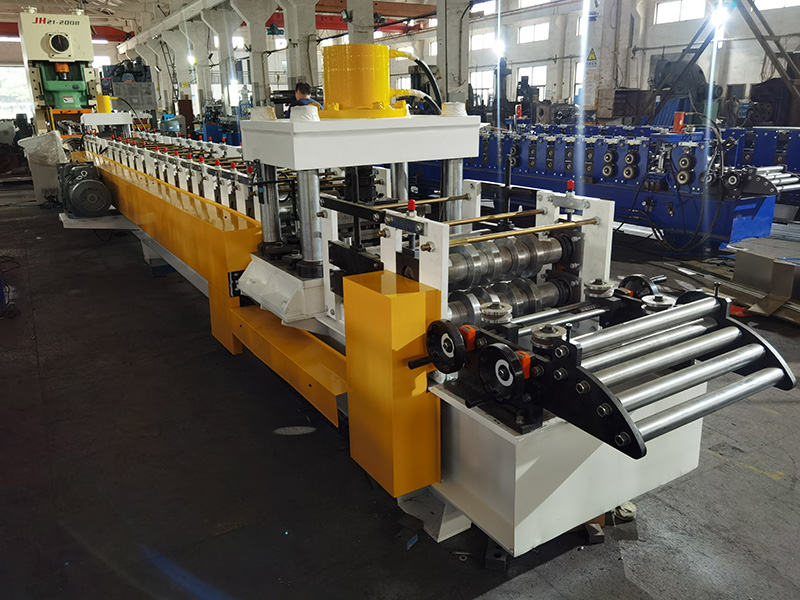

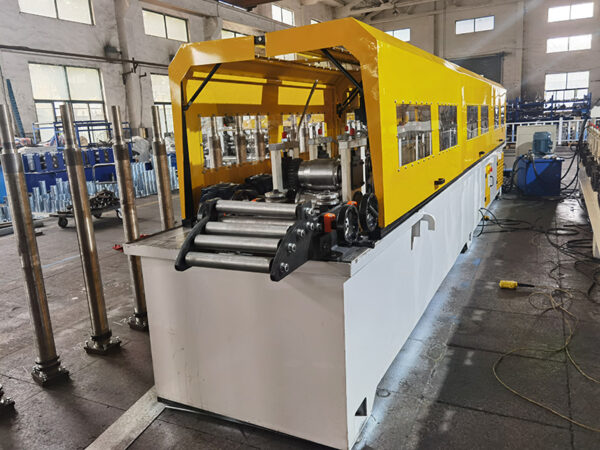

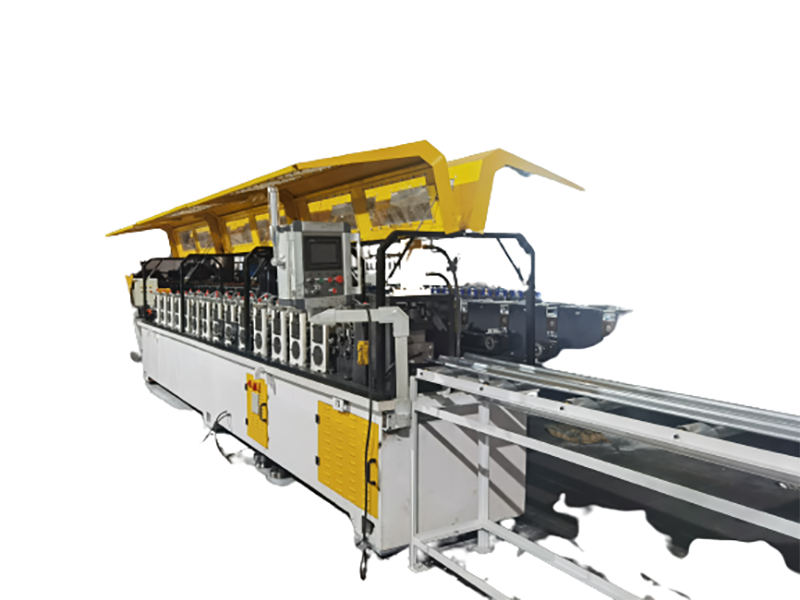

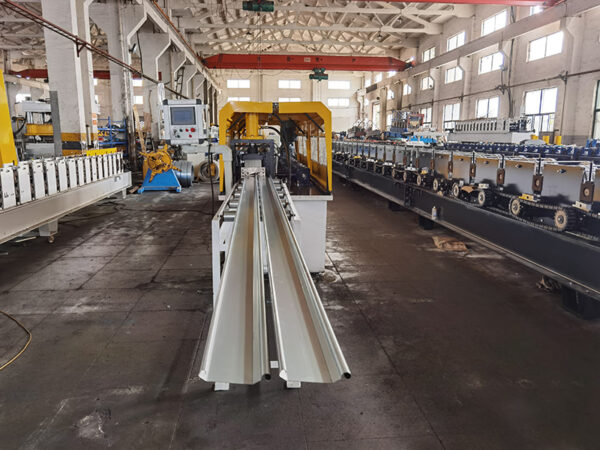

Rolling Shutter Roll Forming Machine

Often used in commercial supermarkets, stores, private residential garages, warehouses, factories and other components of the rolling shutter door blade (rolling shutter door blade).

Process Flow:

Passive loading—roll forming (with guide feed) —Cutting—Unloading

Main parameter

C/N	Item	Unit	Parameters
1	Forming speed	M/min	0-20
2	Number of forming passes	channels	14（as to the profile）
3	Rolling thickness	mm	0.6-1.2
4	Roll material		Gcr15 quenching treatment
5	Shaft material	40Cr quenching treatment (HB220-260)
6	Shaft diameter	Φ60mm, quenching treatment (Harbin bearing)
7	Cutting method	Hydraulic cutting
