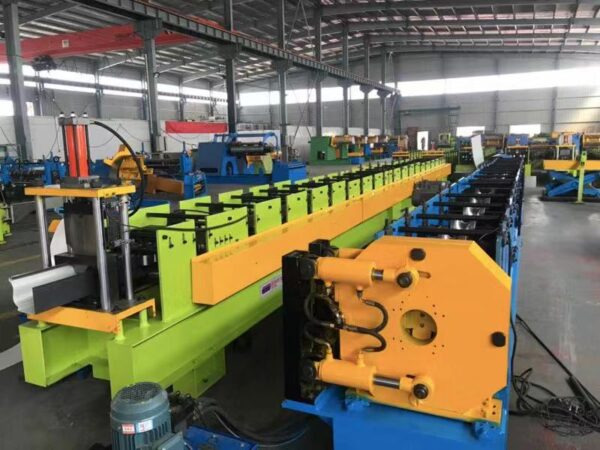

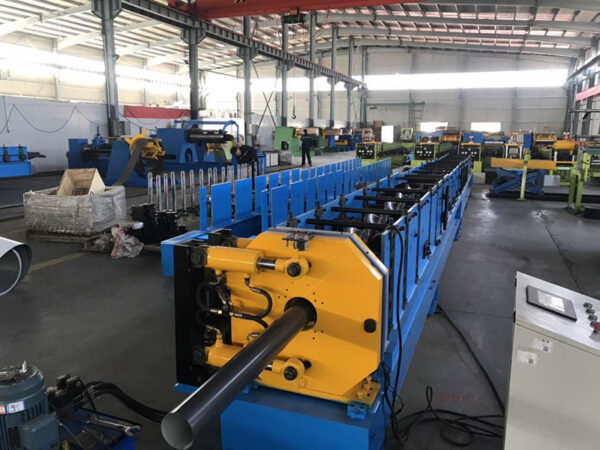

Round Downpipe Forming Machine

The finished products produced by the machine and equipment are downpipes, which are mostly used in the drainage pipes of individual houses, villas, and other family-type houses.

Process Flow:

Passive uncoiling —- guide feeding —- roll forming —- cutting —- fixed-arc bending—Unloading

Main parameter

C/N Item Unit Parameters
1 Forming speed M/min 0-15
2 Number of forming passes channels 23-26(as to the profile)
3 Rolling thickness mm 0.4-0.6mm
4 Roll material Gcr15 quenching treatment
5 Shaft material 40Cr quenching treatment (HB220-260)
6 Shaft diameter Φ70mm,quenching treatment (Harbin bearing)
7 Cutting method Hydraulic cutting
