Slotted Cable Tray Roll Rorming machine

Slotted cable trays equipment is used to produce cable trays related to the electrical industry, producing finished products of ladder bridges and slotted bridges. Commonly used to build photoelectric communication, machine room electrical, circuit, cable equipment and other fields

Process Flow:

Hydraulic uncoiling—pinching feeding leveling— servo feeding & hydraulic punching — Cutting — Roll forming—Unloading

Slotted-Cable-Tray-2.

Main parameter

C/N Item Unit Parameters
1 Forming speed M/min 0-15
2 Number of forming passes channels 20
3 Rolling thickness mm 1-2.5
4 Roll material Gcr15 quenching treatment
5 Shaft material 40Cr quenching treatment (HB220-260)
6 Shaft diameter Φ85mm, quenching treatment (Harbin bearing)
7 Cutting method Hydraulic shear

Application Sites

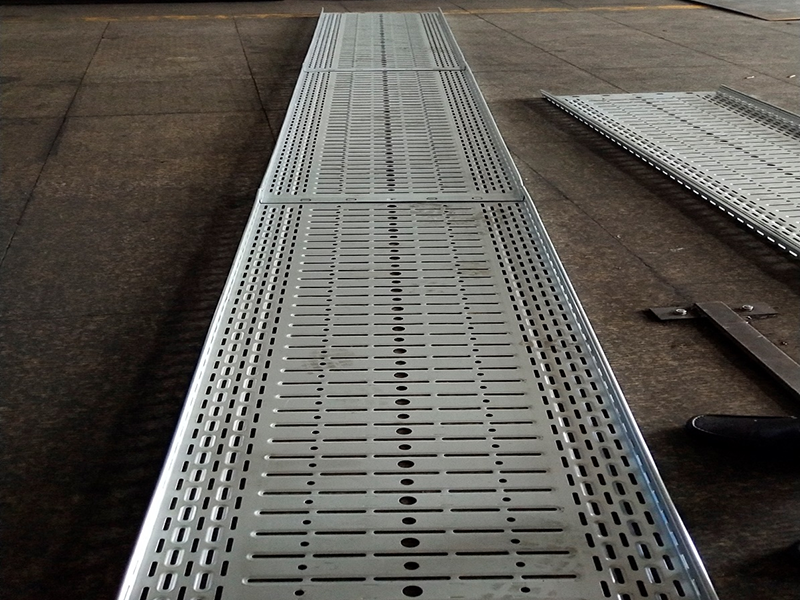

Slotted Cable Tray 2 (2) Slotted Cable Tray 2 (3)
