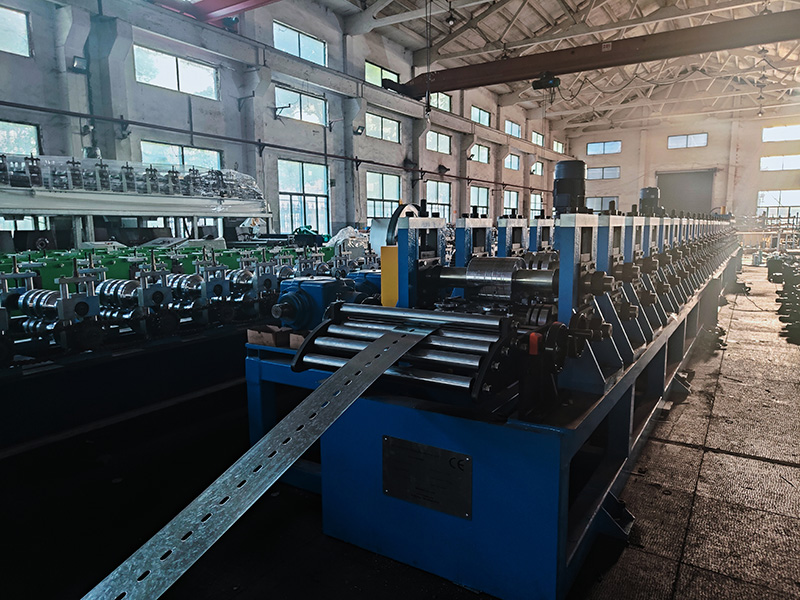

Solar Photovoltaic Bracket Forming Machine

Solar photovoltaic bracket forming machine is used to produce brackets related to the electrical industry, and the finished product is a multifunctional application of lap bracket. It is often used to build multi-purpose brackets in the field of building electrical engineering facilities such as “solar photovoltaic brackets”.

Solar Energy Bracket Roll Forming Machine Process Flow:

Passive uncoiling —-Pinch-feed leveling—Servo Feeding & Punching—roll forming —- cutting —Unloading



Products Categories
Get A Free Quote
Contact Form Demo (#3)

Solar Photovoltaic Racking (2)

Solar Mounting Brackets Machine Main parameter

C/N Item Unit Parameters
1 Forming speed M/min 0-20
2 Number of forming passes channels 19(as to the profile)
3 Rolling thickness mm 0.8-1.5mm
4 Roll material Gcr15 quenching treatment
5 Shaft material 40Cr quenching treatment (HB220-260)
6 Shaft diameter Φ70mm, quenching treatment (Harbin bearing)
7 Cutting method Hydraulic cutting

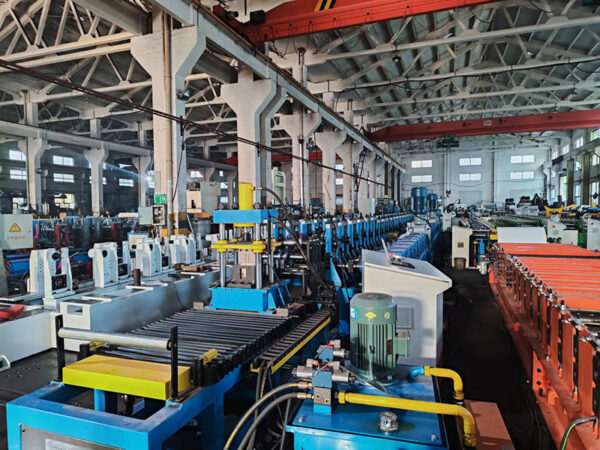

Solar Photovoltaic Racking (1)
