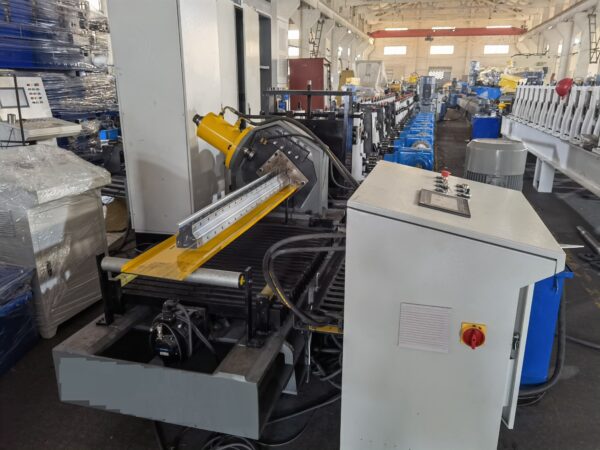

Warehouse Shelf Upright Rack Roll Forming Machine

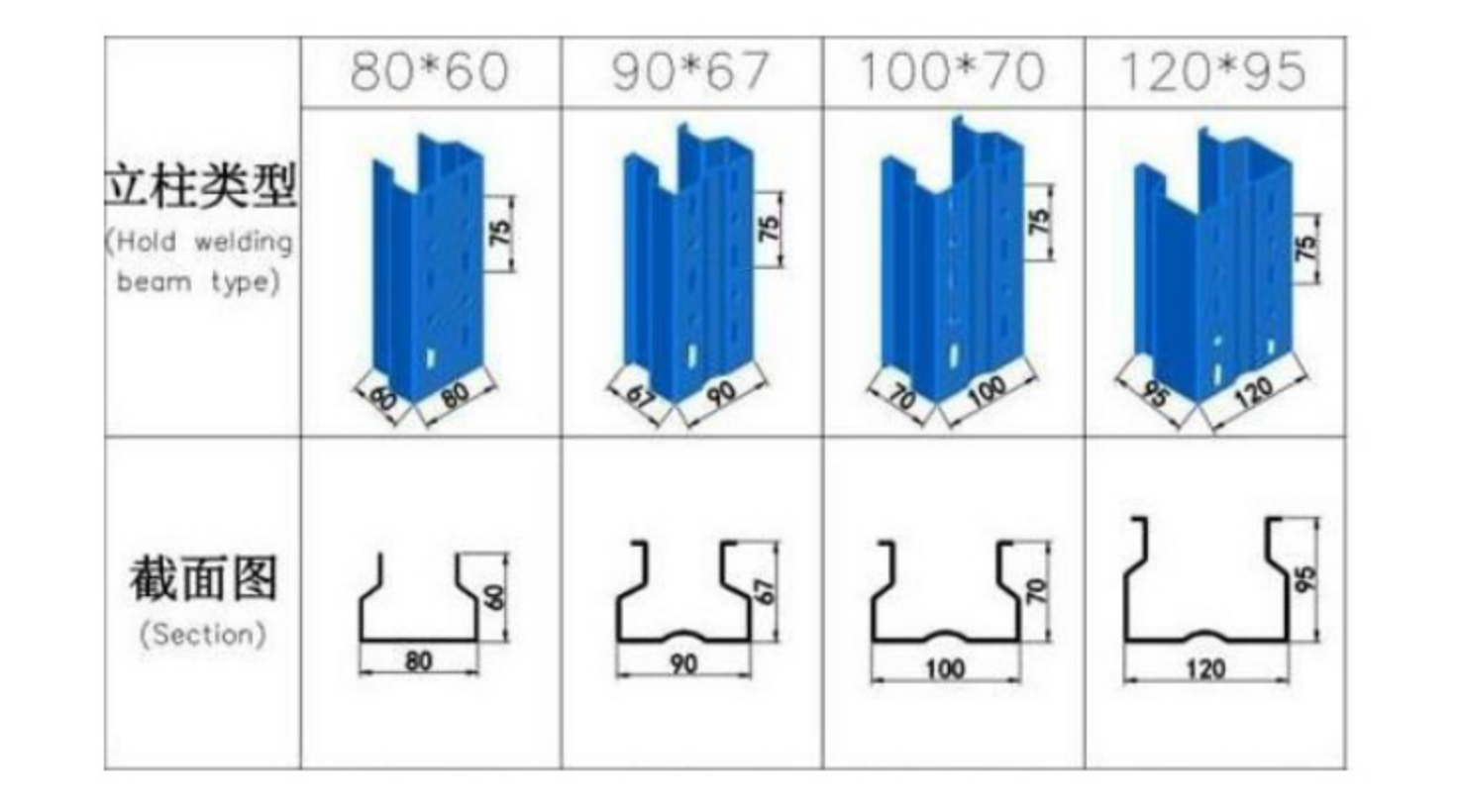

Shelf upright production line equipment is used to produce shelf uprights, one of the components of the shelf series. The finished product is “shelf upright”. Multiple applications

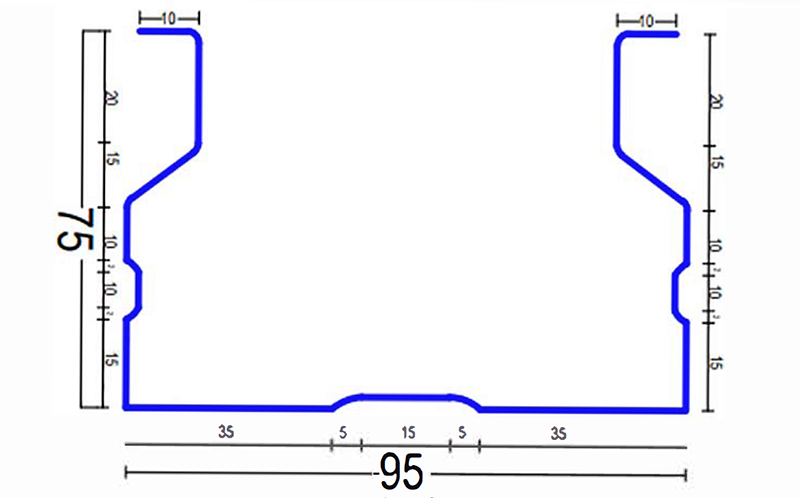

Shelf Upright Forming Machine 01 (1)Shelf Upright Forming Machine 01 (1)

Process Flow:

Automatic uncoiler–guide—leveling&feeding–continuous punching bottom hole–forming — Cutting —Unloading

Upright Racking Roll Forming Machine Parameter

C/N Item Unit Parameters
1 Forming speed M/min 0-15(customized according to user requiremet)
2 Number of forming passes channels 30(as to the profile)
3 Rolling thickness mm 2.0-3.0mm
4 Roll material Gcr15 quenching treatment
5 Shaft material 40Cr quenching treatment (HB220-260)
6 Shaft diameter Φ95mm, quenching treatment (Harbin bearing)
7 Cutting method Hydraulic cutting
8 Total motor power Approx.28kw

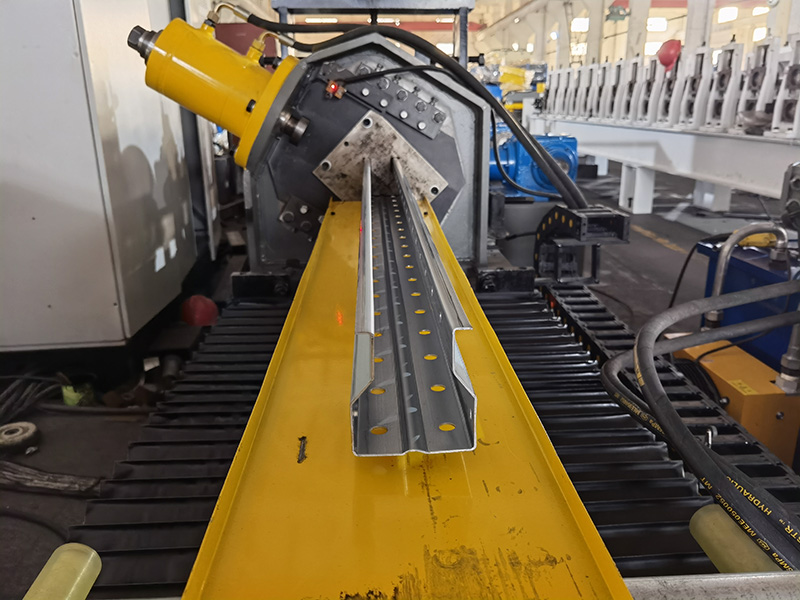

Shelf Upright Forming Machine 01 (2)
