Ladder Cable Tray Forming Machine
The cable tray forming machine is used to produce cable trays related to the electrical industry. The finished products are trapezoidal trays and trough trays. Commonly used in the construction of photoelectric communication, computer room electrical, circuit, cable equipment and other fields
Process Flow:
Hydraulic uncoiling—pinching feeding leveling— servo feeding & hydraulic punching — pinch-feed leveling—multi-station hydraulic punching — Roll forming—Unloading
Ladder Type Cable Tray Forming Machine Parameter
C/N | Item | Unit | Parameters |
1 | Forming speed | M/min | 0-15 |
2 | Number of forming passes | channels | 27(as to the profile) |
3 | Rolling thickness | mm | 1-2.5 |
4 | Roll material | Gcr15 quenching treatment | |
5 | Shaft material | 40Cr quenching treatment (HB220-260) | |
6 | Shaft diameter | Φ85mm, quenching treatment (Harbin bearing) | |
7 | Cutting method | Hydraulic shear |

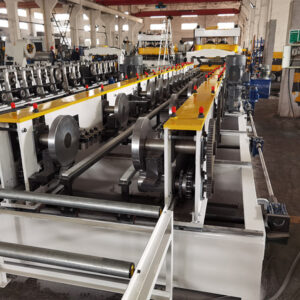

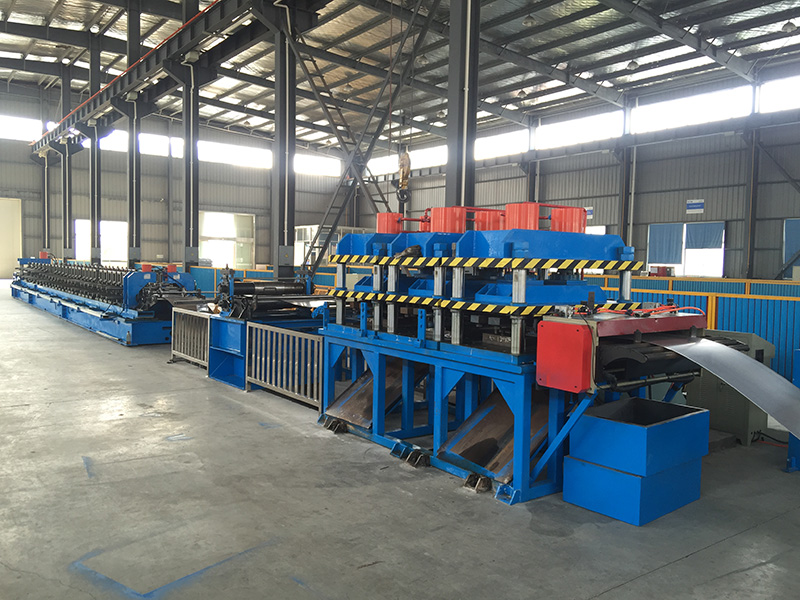

Ladder Cable Tray Making Machine Application Sites
